Conductor Series
Lineup of the conductor
Item | Aluminum Wire | Copper Clad Aluminum Wire | Copper Wire |
High Tension Wire | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Symbol | AL | CCA*1 | DCCA*2 | - | DHT | GDHT | SDHT | VDHT | ||||
30% DCCA |
50% DCCA |
|||||||||||
Size Range [mm] |
0.050 ~ 0.200 |
0.025 ~ 0.200 |
0.030 ~ 0.200 |
0.030 ~ 0.200 |
0.035 ~ 0.200 |
0.015 ~ 0.150 |
0.015 ~ 0.120 |
0.020 ~ 0.120 |
0.020 ~ 0.120 |
0.030 ~ 0.120 |
||
Density [g/cm3] |
2.70 | 3.63 | 3.63 | 4.56 | 5.80 | 8.89 | 8.9 | 8.9 | 8.9 | 8.9 | ||
Conductivity [%] (IACS) @20℃ |
0.050 mm |
62 | 66 | 62 | 69 | 77 | 99 | 99 | 95 | 90 | 87 | |
0.080 mm |
63 | 67 | 63 | 70 | 78 | 100 | 100 | 96 | 91 | 88 | ||
Elongation *2 [%] |
0.050 mm |
10~20 | 7~13 | 3~7 | 5~10 | 6~12 | 17~23 | 15~20 | 15~20 | 15~20 | 16~22 | |
0.080 mm |
12~22 | 12~18 | 4~9 | 7~12 | 8~14 | 18~25 | 17~23 | 17~23 | 17~23 | 18~25 | ||

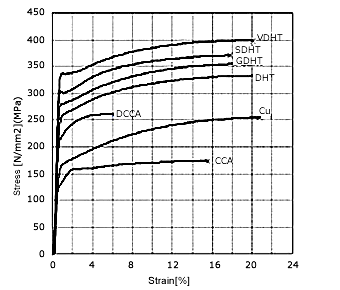

Tensile Strength [N/mm2] |
0.050 mm |
120 | 200 | 310 | 315 | 325 | 280 | 365 | 385 | 400 | 430 | |
0.080 mm |
120 | 175 | 260 | 265 | 280 | 255 | 335 | 355 | 370 | 400 | ||
Features | ||||||||||||
Tensile strength |
☆☆ | ☆☆ | ☆☆☆ | ☆☆ | ☆☆☆ | ☆☆☆☆ | ☆☆☆☆ | ☆☆☆ ☆☆ |
||||
Conductivity | ☆ | ☆☆☆☆ | ☆☆☆☆ | ☆☆☆☆ | ☆☆☆ | ☆☆ | ||||||
Easy sordering |
☆☆☆☆ | ☆☆☆☆ | ☆☆☆☆ | ☆☆☆☆ | ☆☆☆☆ | ☆☆☆☆ | ☆☆☆☆ | ☆☆☆☆ | ☆☆☆☆ | |||
Light weight | ☆☆☆ ☆☆ |
☆☆☆☆ | ☆☆☆☆ | ☆☆☆ | ☆☆ |

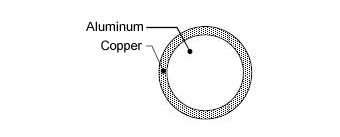

*1 Copper cladding ratio of our standard CCA is 15vol%.
*2 Real ability of class 2 self-bonding wires were mentioned in the table as for Elongation and
Tensile strength.
